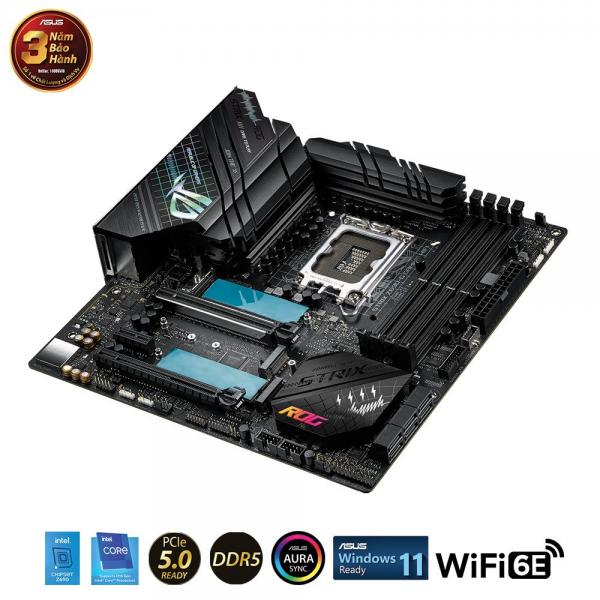

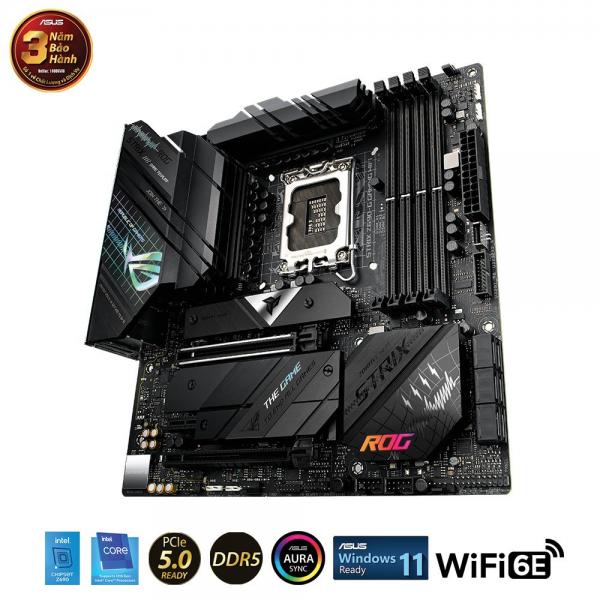

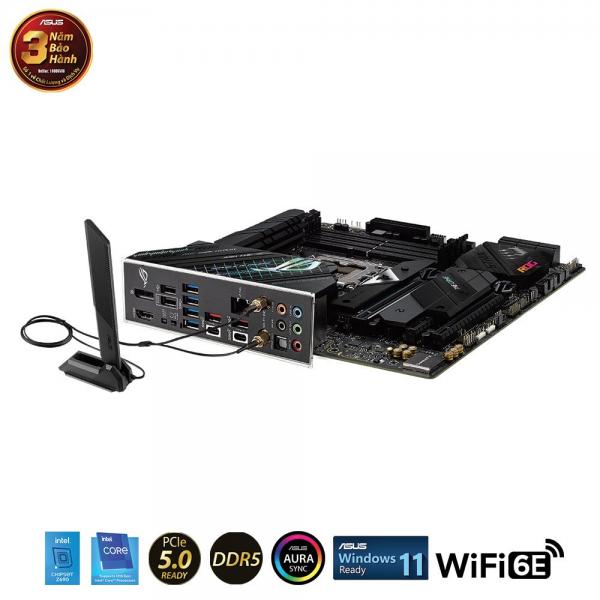

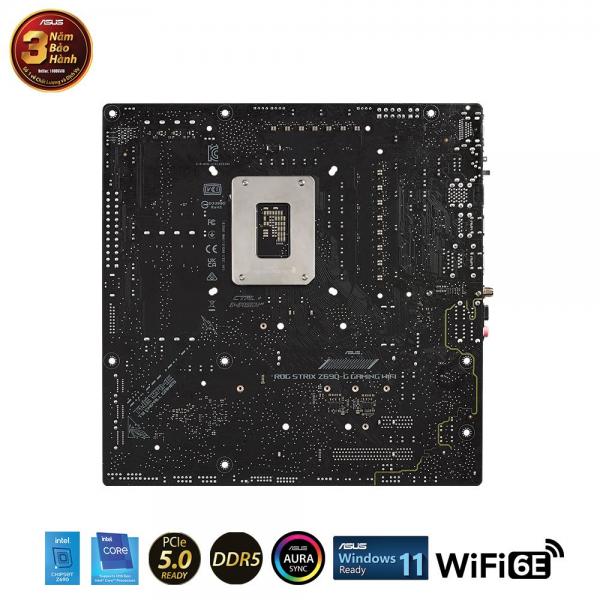

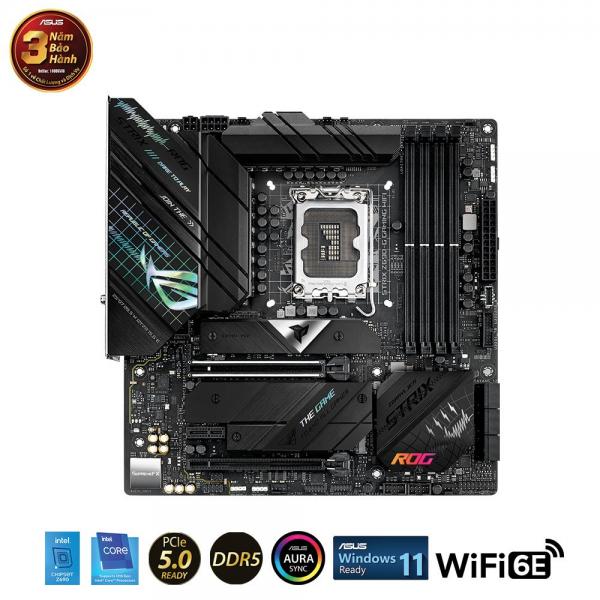

ASUS ROG STRIX Z690-G GAMING WIFI DDR5

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU


Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

ChipsetZ690Khe RAM

4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel® Extreme Memory Profile (XMP)


OptiMem II


*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Cổng xuất hình

1 x DisplayPort**


1 x HDMI® port***


*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


** Support 8K@60Hz as specified in DisplayPort 1.4.


*** Support 4K@60Hz as specified in HDMI 2.1.

Khe PCI

Intel® 12th Gen Processors*


1 x PCIe 5.0 x16 slot (supports x16 mode)


Intel® Z690 Chipset**


1 x PCIe 4.0 x16 slot (supports x4 mode)


1 x PCIe 3.0 x1 slot


* Please check PCIe bifurcation table in support site.


** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Lưu trữ

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 12th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


Intel® Z690 Chipset**


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)


6 x SATA 6Gb/s ports ***


* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.


** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.


*** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.

Ethernet1 x Intel® 2.5Gb Ethernet
ASUS LANGuardWireless & Bluetooth

Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


Bluetooth v5.2


* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

Phía sau: 10 cổng USB
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)

Phía trước: 7 cổng USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 port

Drive âm thanh

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback


Audio Features


- SupremeFX Shielding Technology


- Savitech SV3H712 AMP


- Gold-plated audio jacks


- Rear optical S/PDIF out port


- Premium audio capacitors


- Audio cover

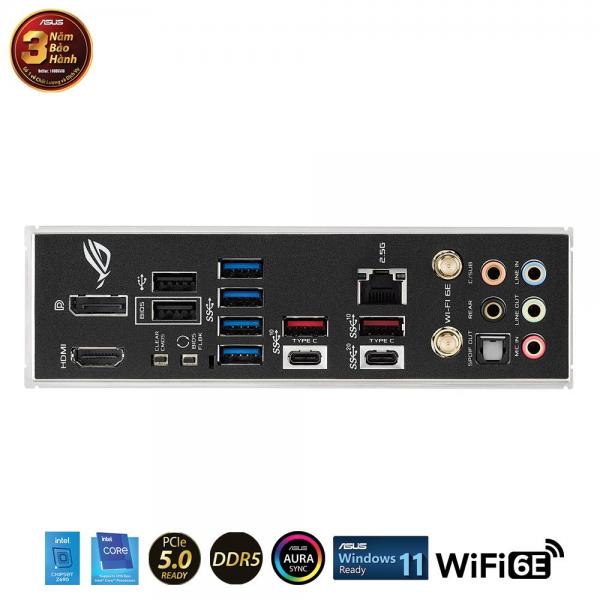

Cổng I/O mặt sau

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x DisplayPort


1 x HDMI® port


1 x Wi-Fi Module


1 x Intel® 2.5Gb Ethernet port


5 x Gold-plated audio jacks


1 x Optical S/PDIF out port


1 x BIOS FlashBack™  button


1 x Clear CMOS button

Cổng I/O nội bộ

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


3 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-5 pin System Panel header


1 x Thermal Sensor header


1 x Thunderbolt™ header

Tính năng đặc biệt

Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- CPU Socket lever protector


- Clear CMOS button


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header


- Addressable Gen 2 RGB headers

Phần mềm đi kèm

ROG Exclusive Software


- GameFirst VI


- ROG CPU-Z


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTS® Sound Unbound


- Anti-virus software


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (60 days free trial)


- AURA Creator


- AURA Sync


- Fan Xpert 4


- Two-Way AI Noise Cancelation


AI Suite 3


- 5-Way Optimization with AI Overclocking


 TPU


 EPU


 DIGI+ VRM


 Turbo app


MyAsus


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


FlexKey


MemTest86

BIOS256 Mb Flash ROM, UEFI AMI BIOSQuản lýWOL by PME, PXEPhụ kiện đi kèm

Cables


4 x SATA 6Gb/s cables


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties pack


1 x M.2 Rubber Package


1 x M.2 Q-Latch package


1 x M.2 Q-Latch package for M.2 backplate


1 x ROG key chain


1 x ROG Strix stickers


1 x ROG Strix thank you card


Installation Media


1 x Support DVD


Documentation


1 x User manual

Hệ điều hànhWindows® 11 64-bit, Windows® 10 64-bitKích thướcmicroATX
24.4cm x 24.4cm
